MOTION DRONE CONTROLLER
Mission statement
"Product that can be used without distinction between disabled and non-disabled people and can provide both physical and mental assistance."
ABOUT DJI
DJI is a global drone and camera company with a 70% market share.
They have high-quality controlling,camera technology (FPV,Gyroscope)
So, they sell products such as drones, drone controllers, and gimbals.
Drone Controllers
DJI has a one-handed and two-handed controller,
and the disadvantages are as follows
One-hand motion controller
- Need to purchase additional products (screen) such as VR
- Detailed Uncontrollability
Two-hand controller
- Quite difficult to use
- More expensive than one hand controller
IMOGEN CARS
TRI-NEX
One hand user?
The two-handed controller is not available for
one-handed users.
In addition, even a one-handed controller will have physical and economic inconvenience
because they have to hold several products with one hand,
Why Important?
DAILY LIFE
They suffer mental as well as physical pain due to their disabilities.
They also suffer from social isolation.
Drones would be an effective product to relieve their mental stress.
Furthermore, it is a product that can also provide communication opportunities.
FINANCIAL ISSUES
SOCIAL ISOLATION
So, if we solve the problem that one-handed users experience with existing drone controllers,
We're going to be able to support
their mental issues beyond physical issues
We will also be able to help with
social problems by providing communication opportunities.
.jpg)
Solution
- Users don't have to purchase additional products like vr,
and they don't have to carry both hands around.
1. This controller can attach the user's phone to the screen.
2. It can be easily operated with a motion control function.
- The screen is always fixed with a gyroscope function.
In other words, this controller has no disadvantages
of existing controllers, only has advantages.
Prototyping Process
1. Gyroscope
- Use components by disassembling existing gimbals
2. 3D modeling / printing
- Produce multiple prototypes considering components, overall size
3. Painting
- multiple sanding, painting, clear coat
4. Resin Printing, 3D Scanner, Polyjet
- Used for additional work (Burton, transparent iPhone, User Preview)
Intuitive and Easy
Motion Control System
3 Axis Gyroscope
Screen Always Fixed
Adjustable Smartphone Holder
You don't have to buy VR
or difficult two-hand controller anymore.

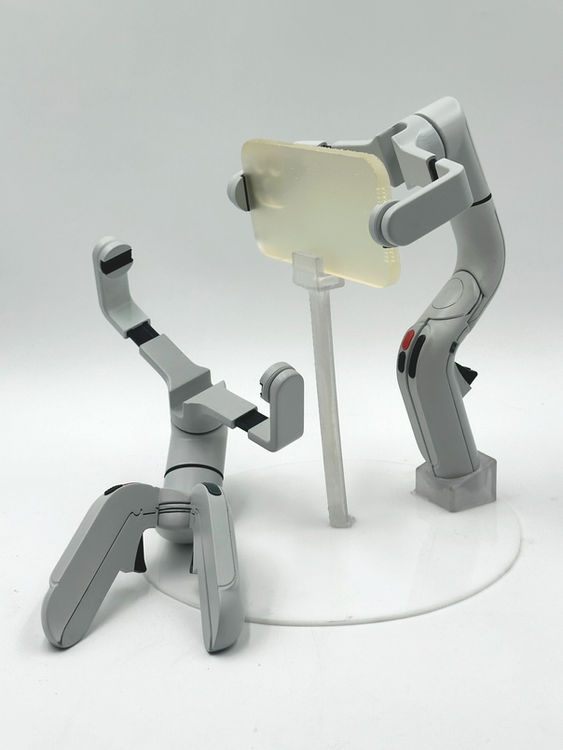

Render section
2 models
One / Two hand mode
Intuitive motion control.
Suitable for everyone.
One Hand Mode
(Casual Mode)
More detailed controls
like driving a drone.
Two Hand Mode
(Driving Mode)
Start / Land
Power
Brake
Mode ( Control )
Mode ( Camera )
Shutter / Record
Accelerator
Mode ( Camera )
Shutter / Record
Accelerator
7.30"
9.97"
1.60"
4.96"
4.09"
Bonus Contents
User Journey
Show-case table
Photoshop Rendering ( Just for fun )
